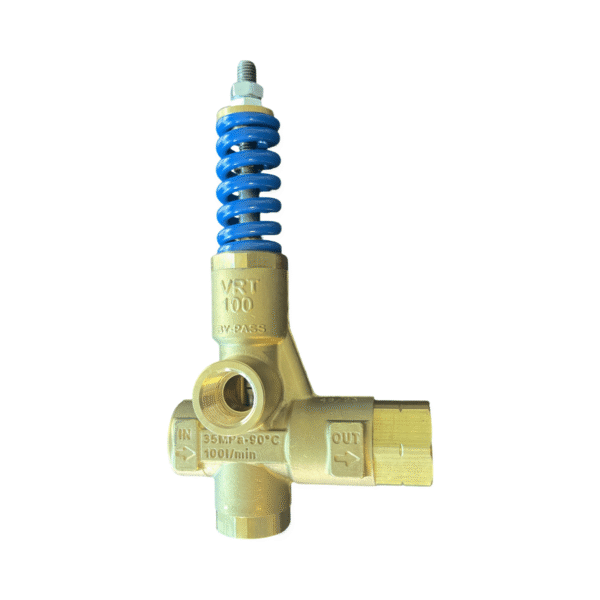

FEATURES:

• Positioning of all o-ring seals before the threads, for greater mechanical strength
• Shutter axially guided for greater stability at high flow rates
• Stainless steel seat and shutter designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life
• Stem with internal anti-rotation system, for greater life
• Stem o-ring seal is placed on the connecting stem guide to allow the stroke of the stainless steel stem on o-ring, increasing the life
• Hexagonal check valve for a better smoothness

SPECIFICATIONS:

• Maximum flow: 26 GPM
• Maximum pressure: 4640 PSI
• Inlet: 1/2″ FPT
• Discharge 1/2″ FPT
• Single bypass port 1/2″ FPT
• BUNA-N SEALS
